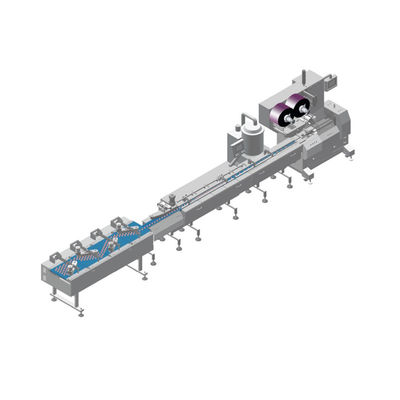

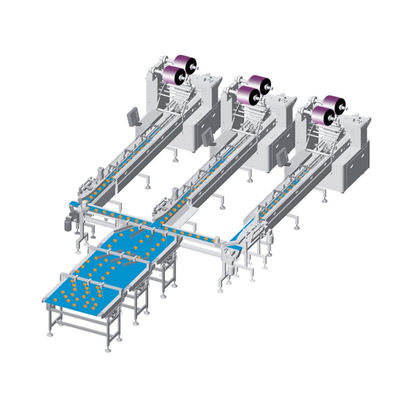

Multiple Row Packaging Machine

What is a Multiple Row Packaging Machine?

A Multiple Row Packaging Machine is a highly efficient automated packaging system widely used in industries such as food, pharmaceuticals, cosmetics, and electronics. It can process multiple rows of products simultaneously, significantly improving packaging efficiency for high-volume production. The machine typically includes automatic feeding, sorting, bagging, sealing, and coding functions, and is compatible with various packaging materials such as plastic film, aluminum foil, and paper bags.

Specifications:

Machine Material: Painting surface / stainless steel conveyer

Packing Speed: 35-220 bags/min

Bag Size(L*W*H): 65-160mm 35-90mm 5-35mm

Pouch Style: Pillow type

Turbo-gear Box XINGGUANG 30model,1:10

Pneumatic Parts AIRTAC

Film Width:90-220mm

Packing Material: Plastic film (OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL)

Dimension(L*W*H):4000mm*920mm*1600mm

Heat Power: 2.1kw

Motor Power: 0.55+0.75kw

Total Power: 3.4kw

executive

component

Motor TIANYANG 180W

Planet-gear Box SHENGBANG 370W

Huichuang 0.75KW

Touch Screen WEINVIE TK6070IK

Temperature Meter KEYANG XMTG-800

SCHNEIDER ATV12H037MZ

Overall Weight: 550kg

Application: Biscuits, bread, cake,bakery,confectionery,dried fruit,fresh fruit,

 instant noodle, hotel commodity,candy,pharmaceutical, medicine, hardware

or loaded by boxtray and other granular product.

Machine working video

Protein bar Feeding packing packaging machine

https://youtu.be/eA6l9jmM8Nw?si=b2ByKx_1kiV4obFp

high speed large capacity toast bread/french bread packing wrapping line

https://youtu.be/72-7UqLrjrE?si=UsI5fFfDItrYrqzk

cupcake/cake/muffins/madeleines sorting wrapping packing line

https://youtu.be/Uu6N64-vkpI?si=Mkgko5ZrnDEhTW7D

snack food feeding and wrapping production line

https://youtu.be/EUVoTbaaBEE?si=oF2NSrXulpSOiH4I

High speed sorting line match two packing machine test For Chile customer

https://youtu.be/Pt-FUxHzSCc?si=1Zva2OZrnyoj7-Ds

Key Advantages of Multiple Row Packaging Machines

1. High Efficiency – Processes multiple rows at once, increasing output by 2-5x compared to single-row machines.

2. Reduced Labor Costs – High automation minimizes manual intervention, lowering workforce expenses.

3. Precision Packaging – Equipped with advanced sensors and PLC control systems for consistent accuracy.

4. Flexible Adaptability – Adjustable settings accommodate different product sizes and shapes, supporting customization.

5. Compliance with Industry Standards – Meets FDA, CE, and other international certifications for safety and hygiene.

Applications Across Industries

• Food Industry – Packaging for snacks, candies, frozen foods, nuts, and other small products.

• Pharmaceutical Industry – Blister packaging for tablets, capsules, and medical devices.

• Cosmetics & Personal Care – Sachets for shampoos, wet wipes, and sheet masks.

• Electronics Industry – Anti-static packaging for small components and batteries.

How to Choose the Right Multiple Row Packaging Machine?

1. Production Capacity – Select a machine with suitable speed (e.g., 60-200 packs per minute).

2. Packaging Material Compatibility – Ensure support for PE, PP, aluminum foil, etc.

3. Automation Level – Determine if additional features like auto-detection, weighing, or labeling are needed.

4. After-Sales Support – Choose a reliable supplier offering technical assistance and spare parts.
