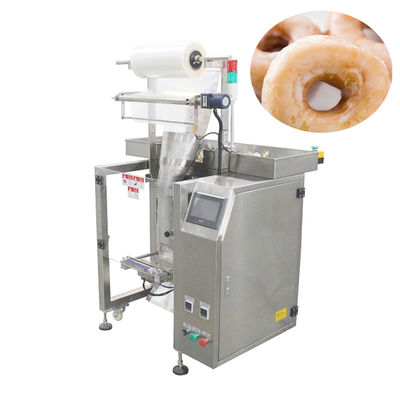

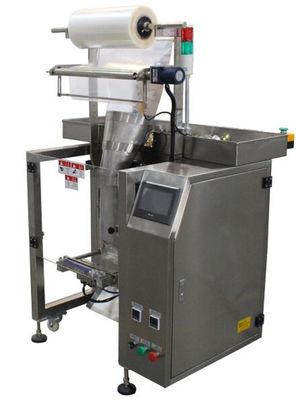

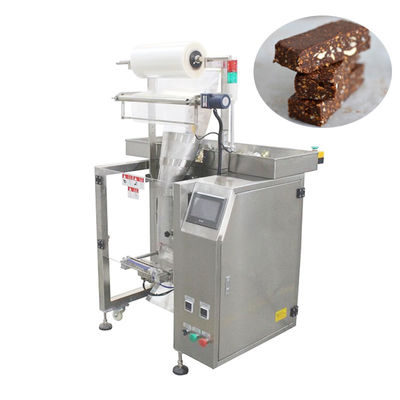

1-70bags/min Vertical Packaging Machine Semi Automatic Packing Machine For Protein Balls

Vertical Packaging Machine For Protein Balls & Dates - High-Efficiency Food Packaging Solution

Industry Challenges in Protein Ball & Date Packaging

As highly nutritious foods, protein balls and dates require special packaging considerations:

• Prone to oxidation, demanding high-barrier packaging

• Irregular shapes that may cause jamming in conventional machines

• Sticky surfaces that affect packaging aesthetics

• Strict hygiene standards (must comply with FDA food-grade requirements)

Key Features of Our Protein Ball & Date Vertical Packaging Machine

1. Specialized Design

• Custom vibration feeding system ensures precise placement of irregularly shaped foods

• Anti-stick conveyor belt prevents sugar adhesion

• Optional nitrogen flushing system extends shelf life

2. Intelligent Packaging System

• High-precision servo dosing system (±0.5g accuracy)

• 10.1" smart touchscreen for one-touch parameter adjustment

• Optional metal detection and weight verification functions

3. High-Efficiency Operation

• Packaging speed: 60-120 bags/min (customizable)

• 304 food-grade stainless steel construction

• Modular design for easy cleaning and maintenance

Specifications

Model: CP01

Bag shape: back seal / trilateral seal

Horizontal seal pattern: straight pattern / reticulated pattern

Longitudinal seal pattern: straight pattern / reticulated pattern

Incision form: tooth-shaped incision / flat-mouth incision: Roll width: Max.480mm

Film thickness: 5-13C (recommended 6-8C)

Bag making length: 40-300mm (touch screen adjustment)

Bag making width: 50-230mm (replace bag making device)

Drive mode: pneumatic

Edge width: 8-10mm (fine adjustment)

Power specifications: 220V, 50 / 60HZ

Bag-making method: Elephant trunk

Film pulling method: stepping motor controls dual wheel film pulling

Speed: 1-70 bags / min

Packing capacity: Max.500g

Power: 1.1kw

Outer packing: wooden box

Equipment weight: 280KG

Equipment size: length 800 * width 700 * height 1600 mm

Measurement method: manual measurement

Standard equipment: coding function

Bag material: OPP / CPP / PE / NIL0 composite / PE + PET / AL, etc.

Machine working Video

Date package machine
