Peanut Energy Bar Machine 120-540pcs/min Stainless Steel

Peanut Energy Bar Machine 120-540pcs/min Stainless Steel

Brand Name:	Papa
Model Number:	P400
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Silver

Capacity:

120-540pcs/min

Warranty:

1 Year

Model:

Machine

Material:

Stainless Steel

Frequency:

50Hz

Power:

6.5KW

Size:

4120*1300*1170mm

Weight:

500KG

Packaging Details:

wooden case

Supply Ability:

10 sets per month

Highlight:

peanut energy bar machine stainless steel

energy bar machine 120-540pcs/min

stainless steel energy bar machine

Product Description

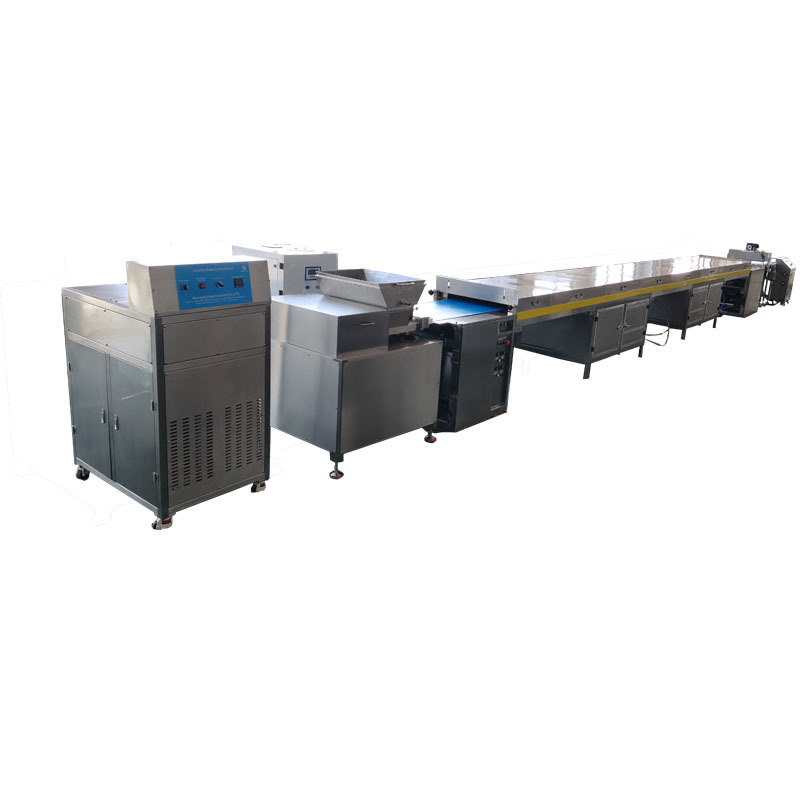

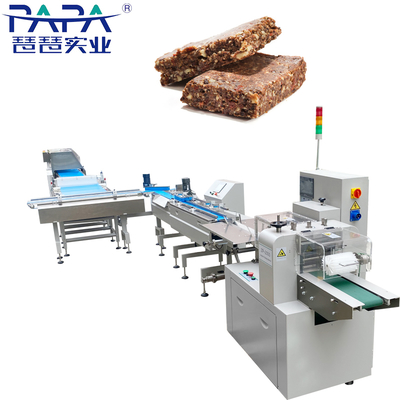

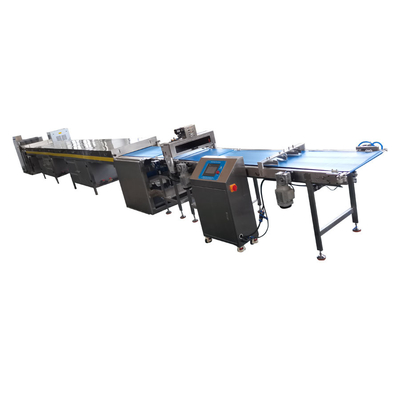

Peanut Energy Bar Production Line

Product Specifications

Attribute	Value
Color	Silver
Capacity	120-540pcs/min
Warranty	1 Year
Model	Machine
Material	Stainless Steel
Frequency	50Hz
Power	6.5KW
Size	412013001170mm
Weight	500KG

Fully Automatic Peanut Energy Bar Production Line | High Efficiency & Customizable

Elevate your snack production with our state-of-the-art Peanut Energy Bar Production Line. Designed for food manufacturers seeking scalability, consistency, and superior quality, this integrated system automates the entire process from mixing to packaging. Whether you're producing chewy, crunchy, or layered peanut granola bars, our line ensures high output with minimal waste, maximizing your ROI.

Key Benefits at a Glance:

High Output: Produce up to 15000-18000 pcs bars per hour (customizable based on model)
Recipe Versatility: Easily adapt to different recipes – chewy, crunchy, with seeds, chocolate chips, or various nuts
Consistent Quality: Precise control over weight, shape, thickness, and ingredient distribution
Hygienic Design: Made from food-grade 304 stainless steel, easy to clean and maintain
Turnkey Solution: From raw material handling to final packaging, we provide a complete solution

Line Configuration and Process Flow

Our standard peanut snack bar production line includes the following key machines, which can be customized to your specific needs:

1. Automatic Mixing System

Function: Evenly blends oats, peanuts, syrups (honey, glucose), oils, protein powder, and other dry and wet ingredients.

Feature: Jacketed mixing tank for temperature control (heating/cooling) to achieve the perfect consistency for extrusion.

2. Bar Forming Machine

Function: Receives the mixed mass and forms it into a continuous, uniform sheet of precise thickness.

Feature: Dual-roller extrusion or pressing. Adjustable roller gap for different bar thicknesses (e.g., 10mm-30mm).

3. Continuous Cooling Tunnel

Function: Cools and solidifies the formed bar sheet, making it stable for cutting. Crucial for achieving the right texture (chewy or hard).

Feature: Adjustable cooling speed and temperature. Length customizable based on production speed.

4. Coating & Enrobing (Optional)

Chocolate Enrober – Covers bars in chocolate, yogurt, or caramel
Sprinkling System – Adds seeds, nuts, or flavor toppings

5. Automatic Packaging Machine

Function: Wraps individual bars in airtight packaging (flow wrap pouch or bar wrapper) to ensure freshness and extend shelf life.

Feature: Options for flow wrapping or flat pouch wrapping. Can integrate weight checkers and date coders.

Peanut Energy Bar Machine 120-540pcs/min Stainless Steel 10

Technical Specifications

Parameter	Details
Production Capacity	15,000–18,000 bars/hour (customizable)
Power Supply	380V/50Hz (or as per customer requirements)
Material	Stainless steel 304 for food safety
Automation Level	Fully automatic / Semi-automatic options
Packaging Types	Flow wrap, pouch, box, or bulk packing

Why Choose Our Production Line?

✅ Turnkey Solution – From mixing to packaging, we provide complete setup & training
✅ Low Maintenance – Durable machinery with easy-to-clean components
✅ Customizable Output – Adjust size, shape, and ingredients for different markets
✅ Global Compliance – Meets FDA, CE, ISO, and HALAL certifications

Applications

Date Energy Bars
Protein & Nut Bars
Organic Fruit Snacks
Gluten-Free & Vegan Bars
Peanut bar

Order Your Production Line Today!
