Protein Ball Rolling Machine
Created with Pixso.

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls

Brand Name: PAPA
Model Number: P188
MOQ: 1
Price: NEGOTIABLE
Payment Terms: T/T
Supply Ability: 15 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Control:
Smart Touch Screen
Power Consumption:
3kW
Motor:
Taiwan Delta
Machine Weight:
400KG
Capacity:
10-120pcs/mins
Dough Filling Ratio:
1：9-10：0
Voltage:
220V， 50HZ
Machine Size:
1680*1200*1700mm
Packaging Details:
wooden case
Supply Ability:
15 sets per month
Highlight:

automatic frozen ball production line

,

professional raspberry jam filling equipment

,

dark chocolate ball rolling machine

Product Description

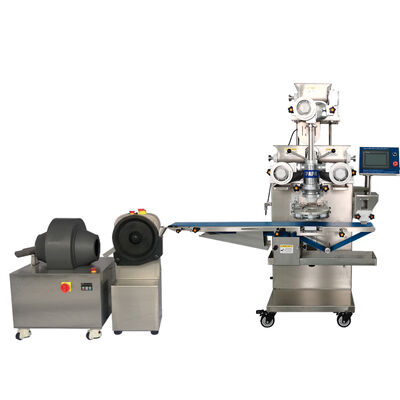

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls

Product Overview

This fully automatic frozen ball production line is a high-end equipment specifically developed for the food industry, perfectly suitable for making raspberry jam and dark chocolate filling frozen balls. The production line integrates filling, molding, and freezing processes, achieving fully automated production from raw materials to finished products.

Core Technical Advantages

  • Dual Filling Injection System: Precisely controls layered injection of raspberry jam and dark chocolate

  • Low-Temperature Forming Technology: Maintains product texture and flavor integrity

  • PLC Intelligent Control: Touchscreen interface, adjustable parameters, simple operation

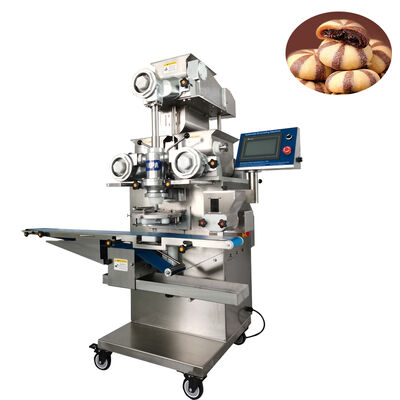

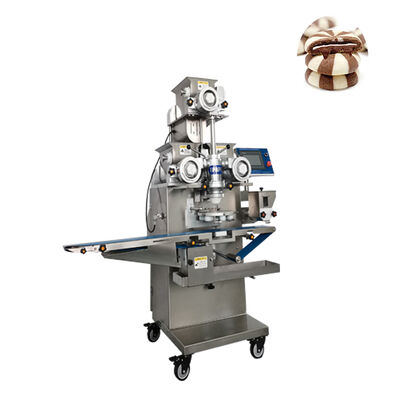

P188 Encrusting Machine

Product Description:

The automatic food machine can change different skin thickness, length, size of food by the machine.can also change different molds for making different shaped food products.The machine can also make double fillings, one fillings, no fillings and soft stuffed pastries such as ,filled cookies,moon cake, maamoul, pineapple cake, mochi, ice cream mochi, meat ball, crystal bun and so on.

Packaging Details:

Daub coal oil on the surface to protect the machine from moisture, then cover with plastic film. Finally pack them with wooden case.



Product shape: ball, cone, round strip, side square, terraced, serrate and etc. Ratio of the product casing and filling: 1:9-10:0

Brand Name

Model

Power (kw)

Voltage

(V)

Dimension

L*W*H

(mm)

Output

pcs/min

Product weight

(g)

Machine weight

(kg)

Material

Mold Material

Packing weight

(kg)

Packing Size

(mm)

Warranty

Certification

PAPA

P188

3

220V Single phase

(Customize)

1680*1200*1700mm

20-120

10-250

400

304 Stainless Steel



PU

350

1900*1200*1800

1

CE

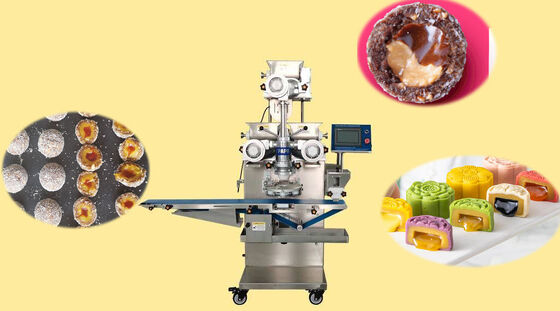

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls 0

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls 1

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls 2

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls 3

Application Areas

  • Frozen dessert production

  • Chocolate product processing

  • Bakery food manufacturing

  • Ice cream production
