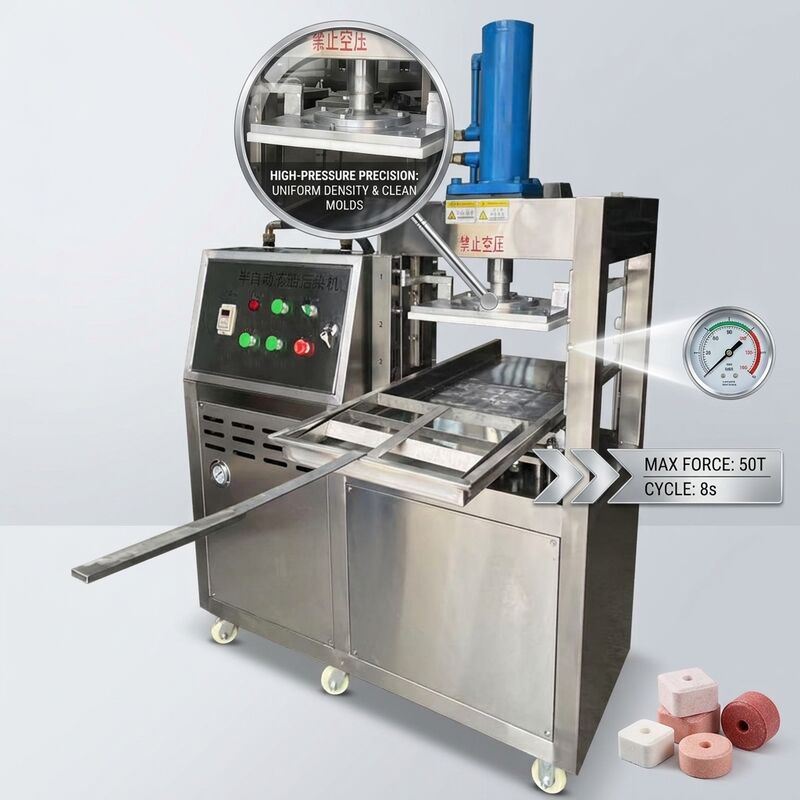

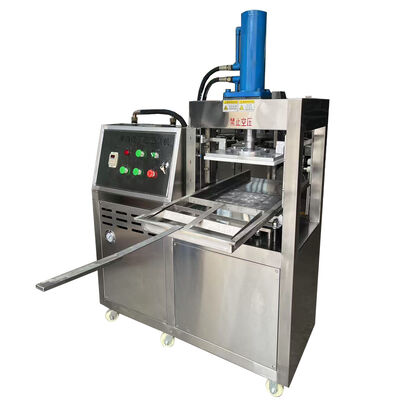

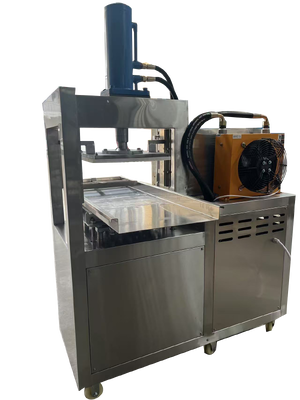

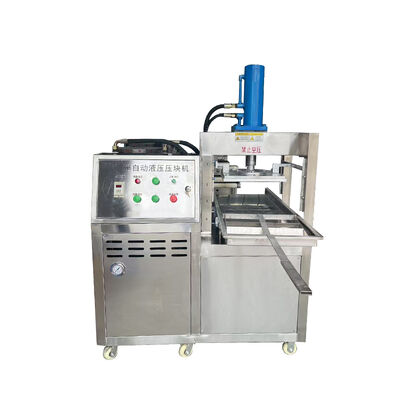

Semi-Automatic Hydraulic Press Machine for Animal Mineral Salt Lick Block

Name: Semi-Automatic Hydraulic Press Machine for Animal Mineral Salt Lick Block
Brand: Shanghai Papa Machine Technology Co.,Ltd.
SKU: PLD-24-35Y
Availability: InStock

Brand Name:	PAPA
Model Number:	PLD-24-35Y
MOQ:	1 set
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

shanghai, China

Certification:

Production Capacity:

150-300 Kg/hour

Dimensions:

1400mm X 1200mm X 950mm

Max Pressing Force:

35 Ton

Output Shape:

Square, Round, Cylinder, Custom

Power Supply:

Electric 380V 3-phase

Use:

Pressing Mineral Salt Powder Into Animal Salt Lick Blocks

Machine Weight:

750kg

Warranty:

12 Months

Packaging Details:

wooden case

Supply Ability:

20 sets per month

Highlight:

Animal Salt Lick Block Making

Adjustable Hydraulic Pressure Tonnage

Anti-Corrosion Salt Resistant Mold

Product Description

Product Overview

This semi-automatic hydraulic forming machine is developed for compressing mineral salt powder (with added trace minerals, optional molasses binder) into uniform animal mineral salt lick blocks for livestock such as cattle, sheep, goat, horse, camel and deer.

Work flow: Manual feeding → Automatic hydraulic pressing → Embossing logo/pattern → Automatic demolding → Manual collect finished blocks.

Only 1 operator required. Produced salt lick blocks feature uniform density, neat shape, smooth surface and low breakage rate; convenient for storage, transportation and long-term licking consumption.

Main Finished Product: Animal Mineral Salt Lick Block

Material: Mineral salt powder with trace minerals (copper, zinc, selenium, iodine, etc.)

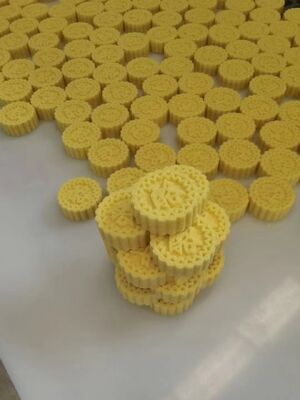

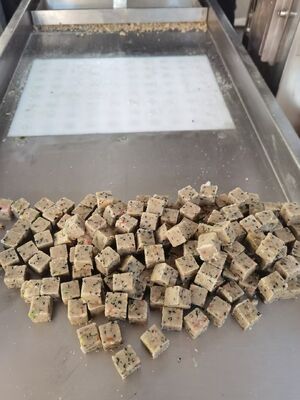

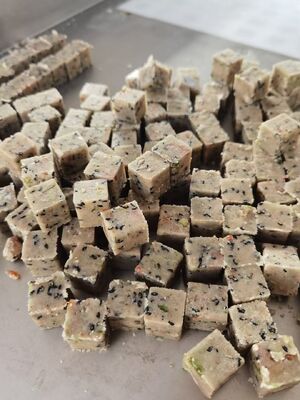

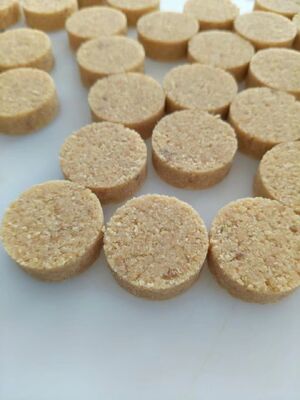

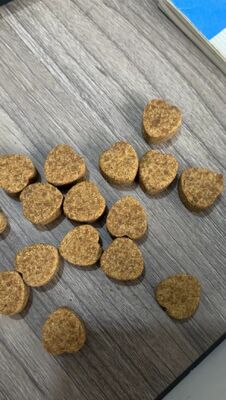

Shape: Square, rectangle, round, cylinder, custom shape

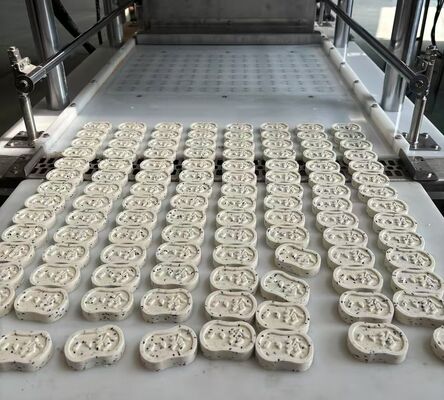

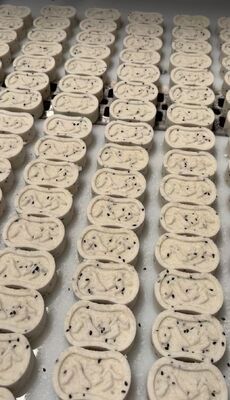

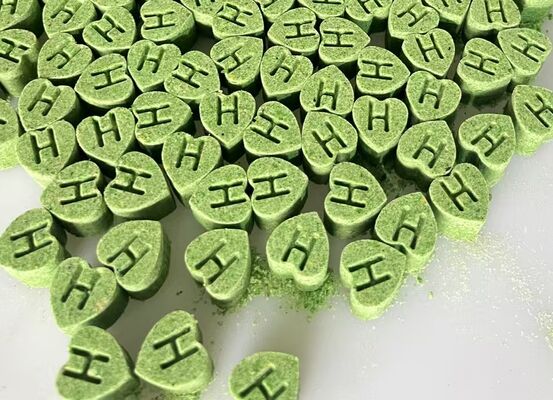

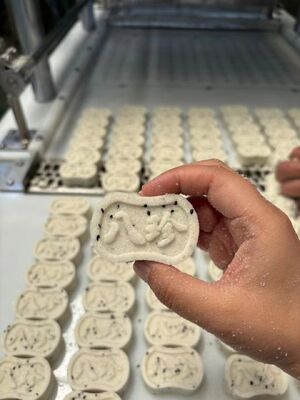

Embossing: Custom logo, text, pattern available on block surface
Feature: Consistent compactness, low breakage rate; post-curing/drying optional after pressing.

Core Advantages

Semi-automatic working, labor-saving

Manual feeding & finished-product collection; pressing, embossing, demolding complete automatically. One worker can run the whole machine.

Adjustable hydraulic pressure & thickness

Press tonnage and block thickness are adjustable on control panel. Set proper compactness according to your salt/mineral formula.

Anti-corrosion contact parts for salt material

Salt is corrosive, so all parts touching powder adopt stainless steel with special surface treatment; molds eject blocks smoothly without sticking. Quick-change mold structure.

Custom mold & logo embossing

Custom shape, dimension and logo embossing available as per your requirement. One machine can produce different block sizes by changing molds.

Solid steel frame, stable long-time running

Heavy-duty welded steel frame ensures stable continuous production, low maintenance, long service life.

Worker spreads mineral salt powder evenly into mold cavity.
Start cycle: hydraulic cylinder goes down to compress powder under preset pressure. Logo/pattern embossed during pressing.

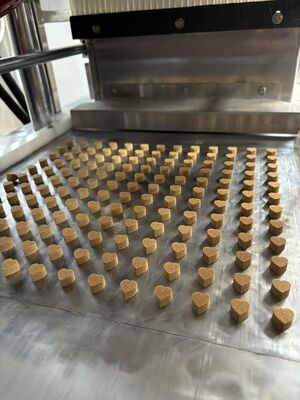

Press head lifts up, automatic ejection pushes finished salt lick block out from mold.
Worker takes out finished blocks, moves to packing or curing area.
Refill powder for next production cycle.

Note: Machine only completes pressing forming. For blocks using molasses binder, curing/drying may be required after pressing.

Technical Parameters (PLD-24-35Y reference)

Item	Specification
Model	PLD-24-35Y
Control mode	Semi-automatic hydraulic control
Power	5.0 kW
Voltage	380V 3-phase (customizable 220V / 415V)
Capacity	150-300 kg/h (depends on block size & weight)
Max pressing force	35 Ton (adjustable)
Block thickness range	3-35 mm customizable
Mold	Custom shape & size, logo embossing available
Machine dimension	1400×1200×950 mm
Net weight	750 kg
Contact material	Stainless steel (anti-corrosion for salt material)
Warranty	12 months (excluding wearing mold parts)

Applicable Raw Material & Market

Suitable: Mineral salt powder, rock salt powder, Himalayan pink salt powder with trace mineral premix, optional molasses binder.

Target customers: Livestock farms, animal feed supplement factories, salt processing plants, veterinary nutrition suppliers.

Not fit for high-moisture sticky paste material. Salt/mineral powder should keep dry or semi-dry status before feeding.
Machine only presses blocks. Curing/drying is optional depending on binder used.
Molds are wearing parts; customized molds can be supplied per your drawing or sample.

Mold custom: shape, dimension, logo embossed on salt lick block.
Overseas voltage adaptation.
Factory test run before shipment; test pressing with customer sample material acceptable.
English operation manual, installation guide, video support.
12-month machine warranty, lifelong technical consultation.

Q1: Can I make different size salt lick blocks on one machine?

A: Yes, just replace customized molds.

Q2: How many workers are needed?

A: Only 1 worker for feeding and collecting.

Q3: Is salt corrosive to the machine?

A: Contact parts use stainless steel with anti-corrosion treatment to resist salt corrosion.

Q4: Can the machine print my brand logo on the block surface?

A: Yes, we engrave your logo/text on the customized mold.

Q5: What voltage for Africa/Southeast Asia market?

A: Standard 380V 3-phase, adjustable to local voltage on request.
