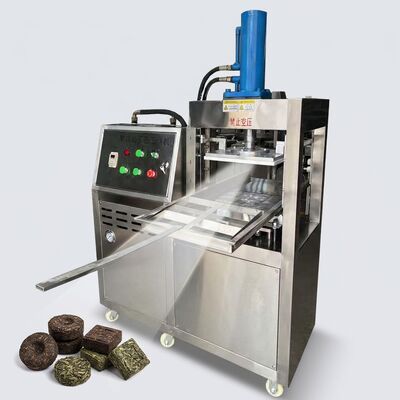

Semi-Automatic Hydraulic Press Machine for Compressed Herbal Tea Brick

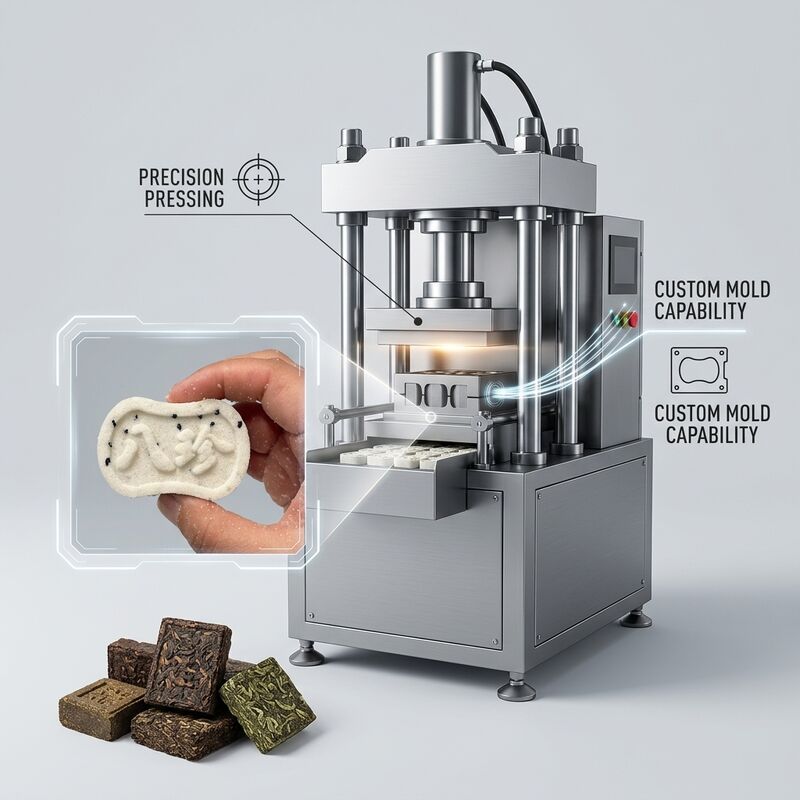

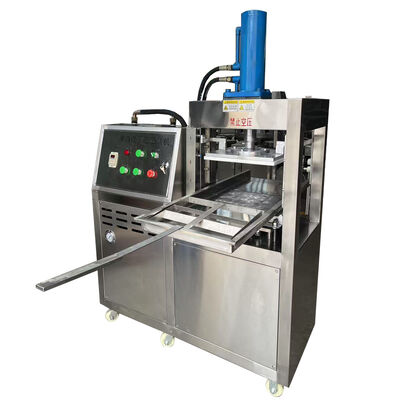

Name: Semi-Automatic Hydraulic Press Machine for Compressed Herbal Tea Brick
Brand: Shanghai Papa Machine Technology Co.,Ltd.
SKU: PLD-24-35Y
Availability: InStock

Brand Name:	PAPA
Model Number:	PLD-24-35Y
MOQ:	1 set
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

shanghai, China

Certification:

Production Capacity:

150-300 Kg/hour

Dimensions:

1400mm X 1200mm X 950mm

Max Pressing Force:

35 Ton

Output Shape:

Round, Square, Rectangle, Custom

Power Supply:

Electric 380V 3-phase

Use:

Compressing Herbal Tea Leaves Into Compressed Tea Bricks

Machine Weight:

750kg

Warranty:

12 Months

Packaging Details:

wooden case

Supply Ability:

20 sets per month

Highlight:

Compressed Tea Brick Hydraulic Forming

Adjustable Pressure Custom Mold Size

Food Grade Stainless Steel Contact

Product Description

Product Overview

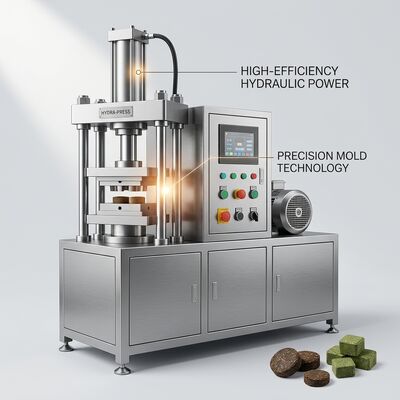

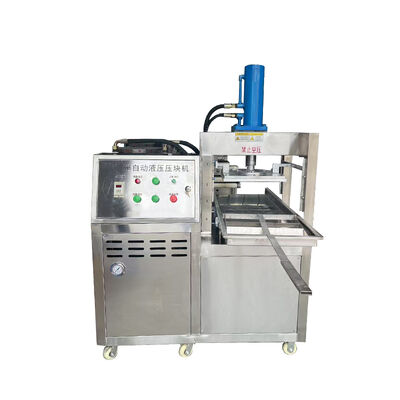

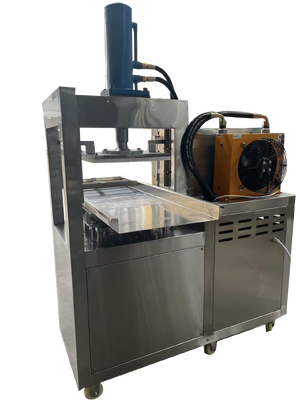

This semi-automatic hydraulic forming machine is developed for compressing loose herbal tea leaves and tea powder into compressed herbal tea bricks (similar to Pu-erh tea cake / compressed tea brick). It is suitable for herbal tea brands, tea factories and tea gift-set producers.

Work flow: Manual feeding → Automatic hydraulic pressing → Embossing logo/pattern → Automatic demolding → Manual collect finished blocks.

Only 1 operator required. Produced blocks feature uniform density, neat shape, smooth surface and low breakage rate; convenient for storage, transportation and retail packaging.

Main Finished Product: Compressed Herbal Tea Brick

Material: Dried herbal tea leaves, tea powder, blended herbal tea mix
Shape: Round cake, square brick, rectangle, nest shape, custom shape

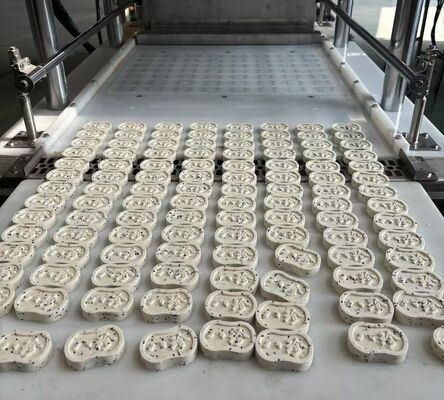

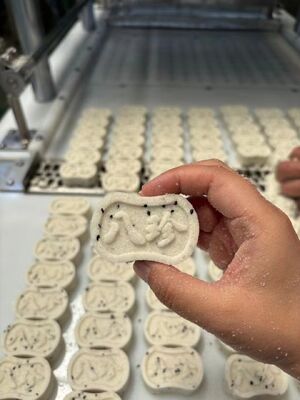

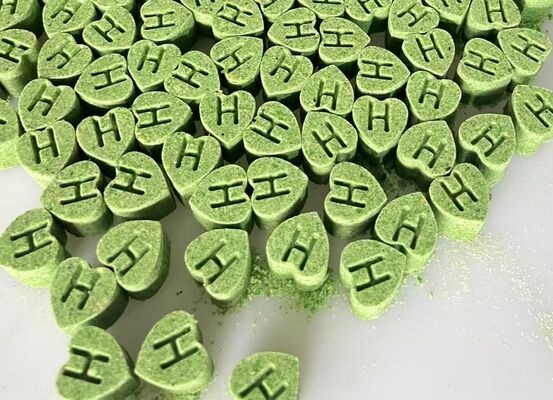

Embossing: Custom logo, text, pattern available on block surface
Feature: Consistent compactness, neat shape, suitable for aging, storage and transportation; steam softening recommended before pressing.

Core Advantages

Semi-automatic working, labor-saving

Manual feeding & finished-product collection; pressing, embossing, demolding complete automatically. One worker can run the whole machine.

Adjustable hydraulic pressure & thickness

Press tonnage and brick thickness are adjustable on control panel, set proper compactness to keep tea aroma and shape without over-compression.

Food-grade stainless-steel contact parts

All parts touching tea leaves adopt stainless steel, easy to clean, meet food-production hygiene requirement.

Custom mold & logo embossing

Custom shape, dimension and logo embossing available. One machine can produce different tea brick sizes by changing molds.

Solid steel frame, stable long-time running

Heavy-duty welded steel frame ensures stable continuous production, low maintenance, long service life.

Worker spreads powder evenly into mold cavity.
Start cycle: hydraulic cylinder goes down to compress powder under preset pressure. Logo/pattern embossed during pressing.

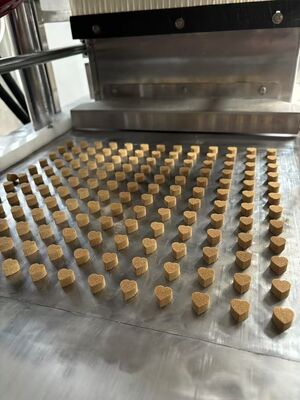

Press head lifts up, automatic ejection pushes finished block out from mold.

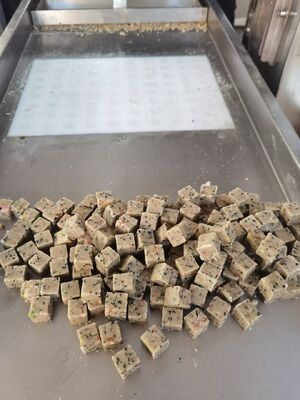

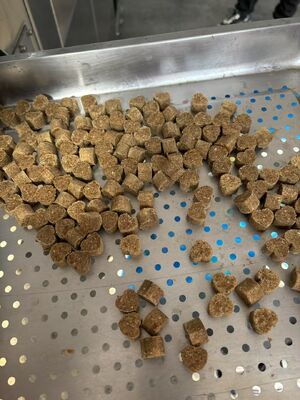

Worker takes out finished blocks, moves to packing or curing area.
Refill powder for next production cycle.

Note: Machine only completes pressing forming. Post drying/curing may be required depending on raw material and binder used.

Technical Parameters (PLD-24-35Y reference)

Item	Specification
Model	PLD-24-35Y
Control mode	Semi-automatic hydraulic control
Power	5.0 kW
Voltage	380V 3-phase (customizable 220V / 415V)
Capacity	150-300 kg/h (depends on block size & weight)
Max pressing force	35 Ton (adjustable)
Block thickness range	3-35 mm customizable
Mold	Custom shape & size, logo embossing available
Machine dimension	1400×1200×950 mm
Net weight	750 kg
Contact material	Food-grade stainless steel
Warranty	12 months (excluding wearing mold parts)

Applicable Raw Material & Market

Suitable: dried herbal tea leaves, tea powder, fermented tea material (steam-softened recommended)

Target customers: tea factories, herbal tea brands, tea gift-set producers, traditional tea cake workshops

Tea leaves are recommended to be steam-softened before pressing for better binding and neat shape.
Machine only presses blocks. Drying/curing is required after pressing to reduce moisture.
Molds are wearing parts; customized molds can be supplied per your drawing or sample.

Mold custom: shape, dimension, logo embossed on block surface.
Overseas voltage adaptation.
Factory test run before shipment; test pressing with customer sample material acceptable.
English operation manual, installation guide, video support.
12-month machine warranty, lifelong technical consultation.

Q1: Can I make different size tea bricks on one machine?

A: Yes, just replace customized molds.

Q2: How many workers are needed?

A: Only 1 worker for feeding and collecting.

Q3: Can the machine press round tea cakes?

A: Yes, round, square and custom shapes are available by changing molds.

Q4: Can the machine print my brand logo on the tea brick?

A: Yes, we engrave your logo/text on the customized mold.

Q5: Do I need to steam tea leaves before pressing?

A: Steam softening is recommended for traditional compressed tea brick to bind leaves tightly.
