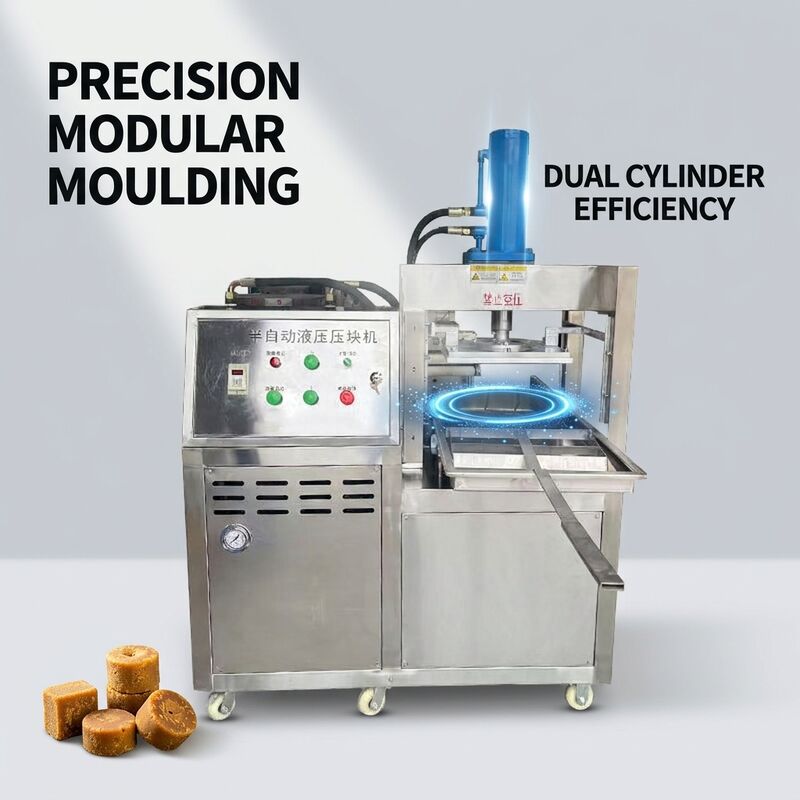

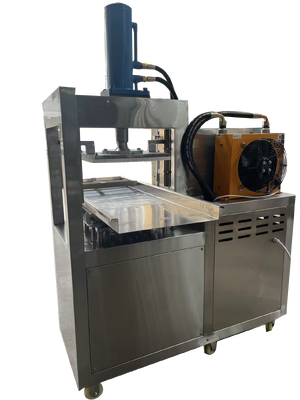

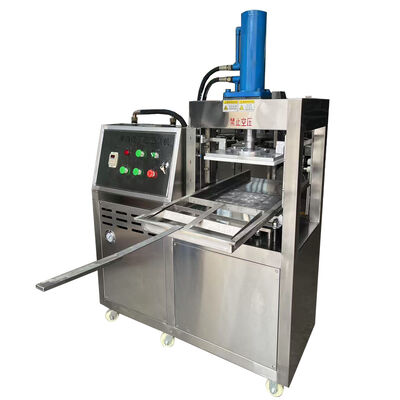

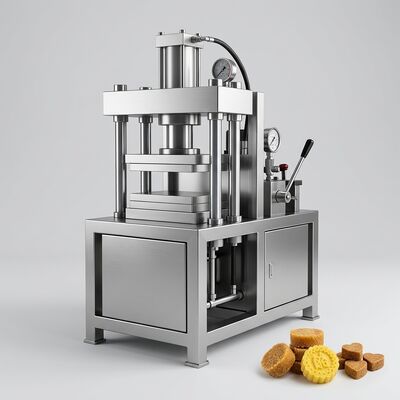

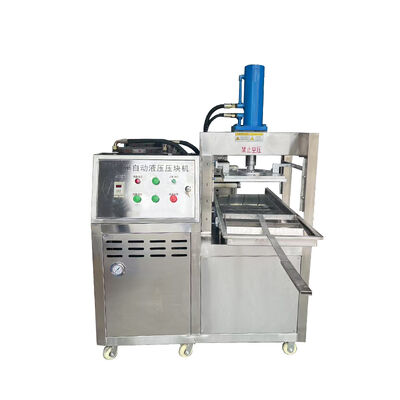

Semi-Automatic Hydraulic Press Machine for Palm Sugar Brick Making 35 Ton

Name: Semi-Automatic Hydraulic Press Machine for Palm Sugar Brick Making 35 Ton
Brand: Shanghai Papa Machine Technology Co.,Ltd.
SKU: PLD-24-35Y
Availability: InStock

Brand Name:	PAPA
Model Number:	PLD-24-35Y
MOQ:	1 set
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

shanghai, China

Certification:

Production Capacity:

150-300 Kg/hour

Dimensions:

1400mm X 1200mm X 950mm

Max Pressing Force:

35 Ton

Output Shape:

Square, Rectangle, Round, Custom

Power Supply:

Electric 380V 3-phase

Use:

Compressing Palm Sugar Powder Into Solid Sugar Bricks

Machine Weight:

750kg

Warranty:

12 Months

Packaging Details:

wooden case

Supply Ability:

20 sets per month

Highlight:

Palm Sugar Block Hydraulic Pressing

Quick Change Mold System

Automatic Demolding Logo Embossing

Product Description

Product Overview

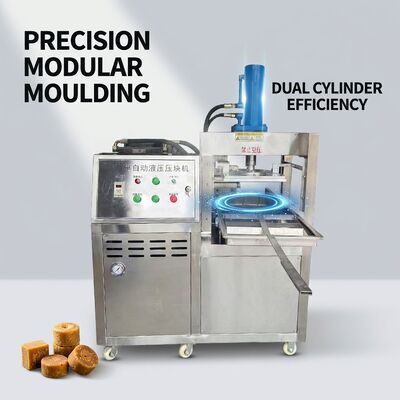

This semi-automatic hydraulic forming machine is developed for compressing palm sugar (gula melaka / jaggery) powder and granules into solid palm sugar bricks and blocks. It is suitable for palm sugar producers, coconut sugar factories and natural sweetener processing plants.

Work flow: Manual feeding → Automatic hydraulic pressing → Embossing logo/pattern → Automatic demolding → Manual collect finished blocks.

Only 1 operator required. Produced blocks feature uniform density, neat shape, smooth surface and low breakage rate; convenient for storage, transportation and retail packaging.

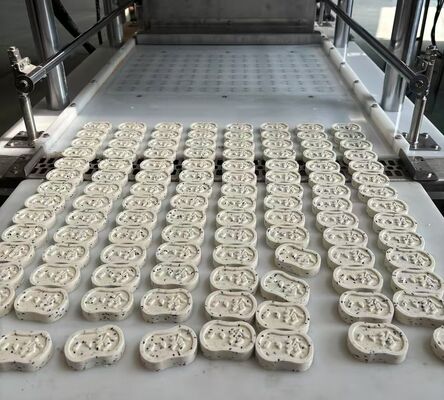

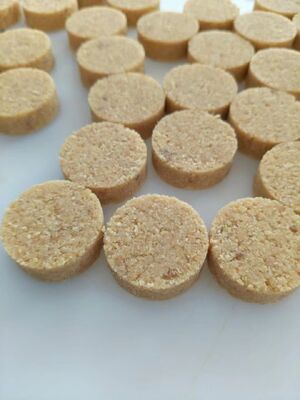

Main Finished Product: Palm Sugar Brick

Material: Palm sugar powder, coconut sugar granules, jaggery powder

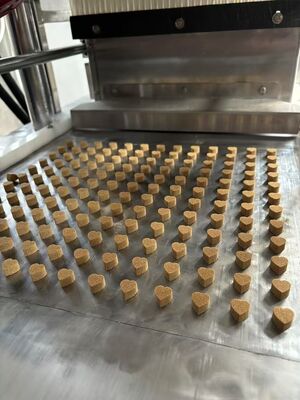

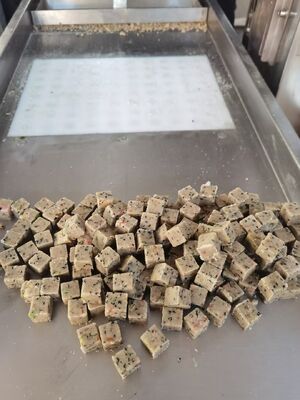

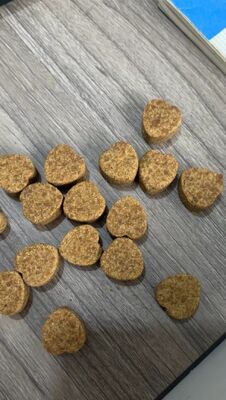

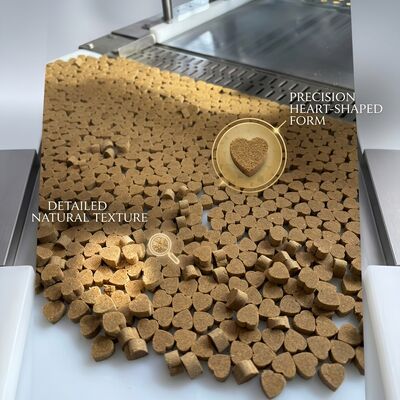

Shape: Square brick, rectangle, round, custom shape

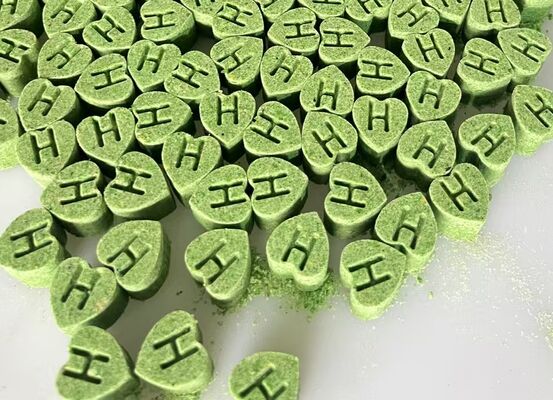

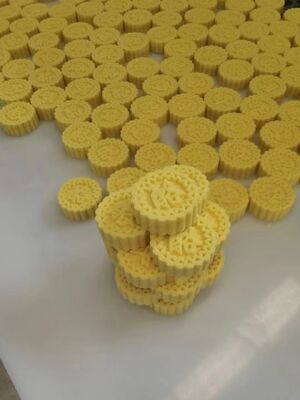

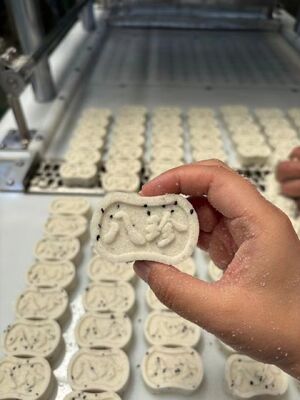

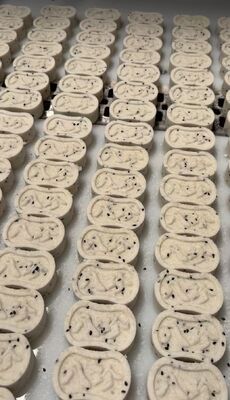

Embossing: Custom logo, text, pattern available on block surface
Feature: Consistent compactness, neat shape, low breakage rate; convenient for retail packaging and transportation.

Core Advantages

Semi-automatic working, labor-saving

Manual feeding & finished-product collection; pressing, embossing, demolding complete automatically. One worker can run the whole machine.

Adjustable hydraulic pressure & thickness

Press tonnage and brick thickness are adjustable on control panel, set proper compactness according to palm sugar granule size and humidity.

Food-grade stainless-steel contact parts

All parts touching sugar adopt stainless steel, easy to clean, meet food-production hygiene requirement.

Quick-change mold system

Quick-change mold structure allows fast switch between different brick sizes and shapes for small-batch production.

Solid steel frame, stable long-time running

Heavy-duty welded steel frame ensures stable continuous production, low maintenance, long service life.

Worker spreads powder evenly into mold cavity.
Start cycle: hydraulic cylinder goes down to compress powder under preset pressure. Logo/pattern embossed during pressing.
Press head lifts up, automatic ejection pushes finished block out from mold.
Worker takes out finished blocks, moves to packing or curing area.
Refill powder for next production cycle.

Note: Machine only completes pressing forming. Post drying/curing may be required depending on raw material and binder used.

Technical Parameters (PLD-24-35Y reference)

Item	Specification
Model	PLD-24-35Y
Control mode	Semi-automatic hydraulic control
Power	5.0 kW
Voltage	380V 3-phase (customizable 220V / 415V)
Capacity	150-300 kg/h (depends on block size & weight)
Max pressing force	35 Ton (adjustable)
Block thickness range	3-35 mm customizable
Mold	Custom shape & size, logo embossing available
Machine dimension	1400×1200×950 mm
Net weight	750 kg
Contact material	Food-grade stainless steel
Warranty	12 months (excluding wearing mold parts)

Applicable Raw Material & Market

Suitable: palm sugar powder, coconut sugar granules, jaggery powder (dry or semi-dry)

Target customers: palm sugar producers, coconut sugar factories, natural sweetener processing plants, food factories

Palm sugar should be granulated/powdered before feeding; high-moisture sticky paste is not suitable.
Machine only presses blocks. Drying/curing is optional depending on sugar humidity.
Molds are wearing parts; customized molds can be supplied per your drawing or sample.

Mold custom: shape, dimension, logo embossed on block surface.
Overseas voltage adaptation.
Factory test run before shipment; test pressing with customer sample material acceptable.
English operation manual, installation guide, video support.
12-month machine warranty, lifelong technical consultation.

Q1: Can I make different size sugar bricks on one machine?

A: Yes, just replace customized molds.

Q2: How many workers are needed?

A: Only 1 worker for feeding and collecting.

Q3: Is the machine food-grade?

A: Yes, all contact parts use food-grade stainless steel.

Q4: Can the machine print my brand logo on the sugar brick?

A: Yes, we engrave your logo/text on the customized mold.

Q5: What voltage for overseas market?

A: Standard 380V 3-phase, adjustable to local voltage on request.
