Brand Name: | PAPA |
MOQ: | 1 set |
Price: | negotiable |
Payment Terms: | T/T or L/C at sight |
Supply Ability: | 80sets/month |

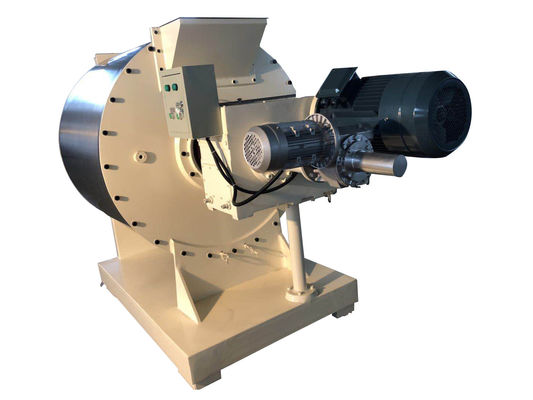

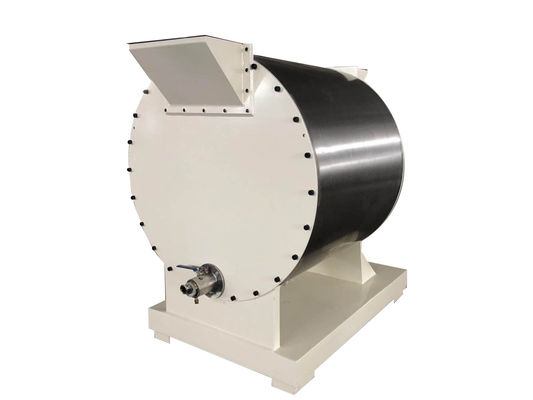

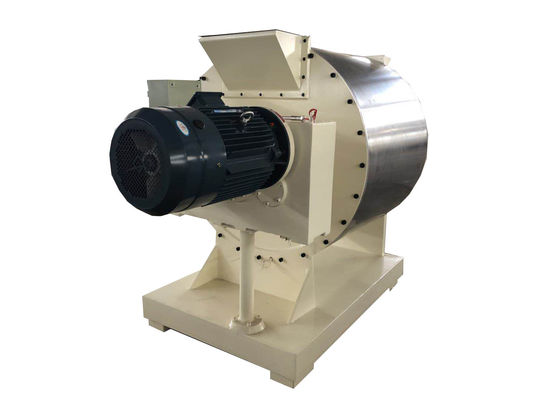

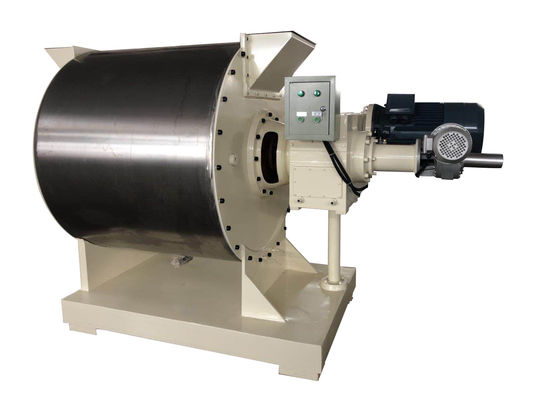

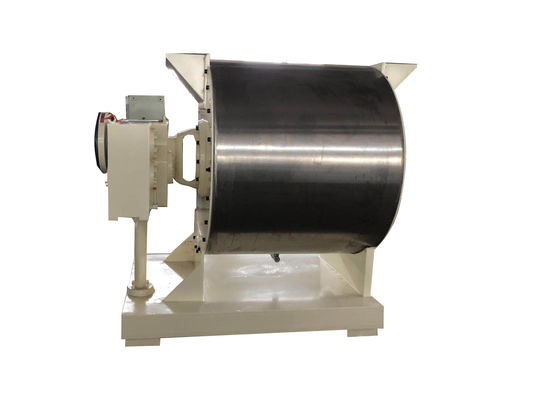

A chocolate conche machine is a critical piece of equipment in chocolate manufacturing, designed to refine and enhance the flavor, texture, and smoothness of chocolate. Through continuous mixing, heating, and aeration, conching removes unwanted acidity, develops rich aromas, and ensures a velvety melt-in-the-mouth consistency.
✔ Improved Flavor Development – Breaks down volatile acids for a smoother, well-rounded taste
✔ Ultra-Fine Texture – Reduces particle size for silky-smooth chocolate
✔ Enhanced Flow Properties – Optimizes viscosity for molding, enrobing, or coating
✔ Extended Shelf Life – Proper conching prevents fat bloom and maintains freshness
✔ Customizable Processing – Adjustable time, temperature, and speed for different chocolate types
SPecifications
Model | 20L | 500L | 1000L | 2000L |
Capacity | 20L | 500L | 1000L | 2000L |
Grinding Finess | 20-25um | 20-25um | 20-25um | 20-25um |
Main axle rotating speed | 93rpm | 33rpm | 37rpm | 37rpm |
Grinding time | 16-22 h | 16-22 h | 16-22 h | 16-22 h |
Main motor power | 1.5KW | 15KW | 22KW | 30KW |
Electrical heating power | 0.6KW | 5KW | 5KW | 7.5KW |
Weight | 295kg | 2600kg | 3380kg | 4700kg |
Dimension | 98*65*115cm | 246*126*168cm | 272*134*179cm | 280*180*221cm |
Machine working video
Traditional slow conching for premium dark chocolate
Allows full flavor development and moisture evaporation
Faster processing for milk & white chocolate
Ideal for medium-scale production
Fully automated, high-capacity conching
Used in industrial chocolate factories
Small batch (50-100kg) for artisan chocolate makers
Large-scale (500kg+) for industrial manufacturers
Dark chocolate requires longer conching
Milk/white chocolate needs gentler treatment
Precise temperature regulation (40-80°C)
Adjustable airflow for flavor refinement
Stainless steel construction (304 or 316 grade)
Easy-to-clean design with minimal dead spots
A well-conched chocolate has superior:
✅ Taste – Balanced, less acidic, with deep cocoa notes
✅ Mouthfeel – Silky texture without grittiness
✅ Appearance – Glossy finish and even color
✅ Workability – Perfect viscosity for molding or coating
