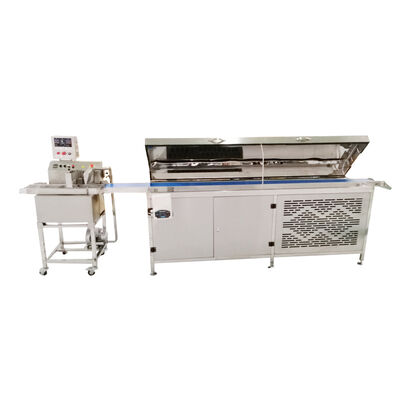

Energy Bar Production Line Chocolate Coating 60 Bars per Minute Automatic

Energy Bar Production Line Chocolate Coating 60 Bars per Minute Automatic

Brand Name:	Papa
Model Number:	P170
MOQ:	1
Price:	negotiate
Payment Terms:	T/T
Supply Ability:	10sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Weight:

10~100g

Package Size:

12000mm*700*800mm

Package:

Wooden Packing

Power:

13kw

Machine Weight:

2000kg

Machine Type:

Automatic Energy Bar Production Machine

Product Filling:

Customize

Operatingtemperaturerange:

10°C To 40°C

Certifications:

Power Supply:

220V

Safety Features:

Emergency Stop Button, Safety Guards, Overload Protection

Material Compatibility:

Nuts, Seeds, Dried Fruits, Cereals, Chocolate, Protein Powders

Operating Interface:

Touch Screen

Feature:

High Efficiency

Capacity:

60 Bars Per Minute

Bar Weight Range:

10-100g

Material Compatibility:

Nuts, Seeds, Dried Fruits, Cereals

Operating Temperature:

10 To 40 Celsius

Safety Features:

Emergency Stop, Overload Protection

Packaging:

Wooden Packing

Packaging Details:

wooden case

Supply Ability:

10sets per month

Highlight:

Chocolate Coating System

60 Bars per Minute

Automatic Energy Bar Line

Product Description

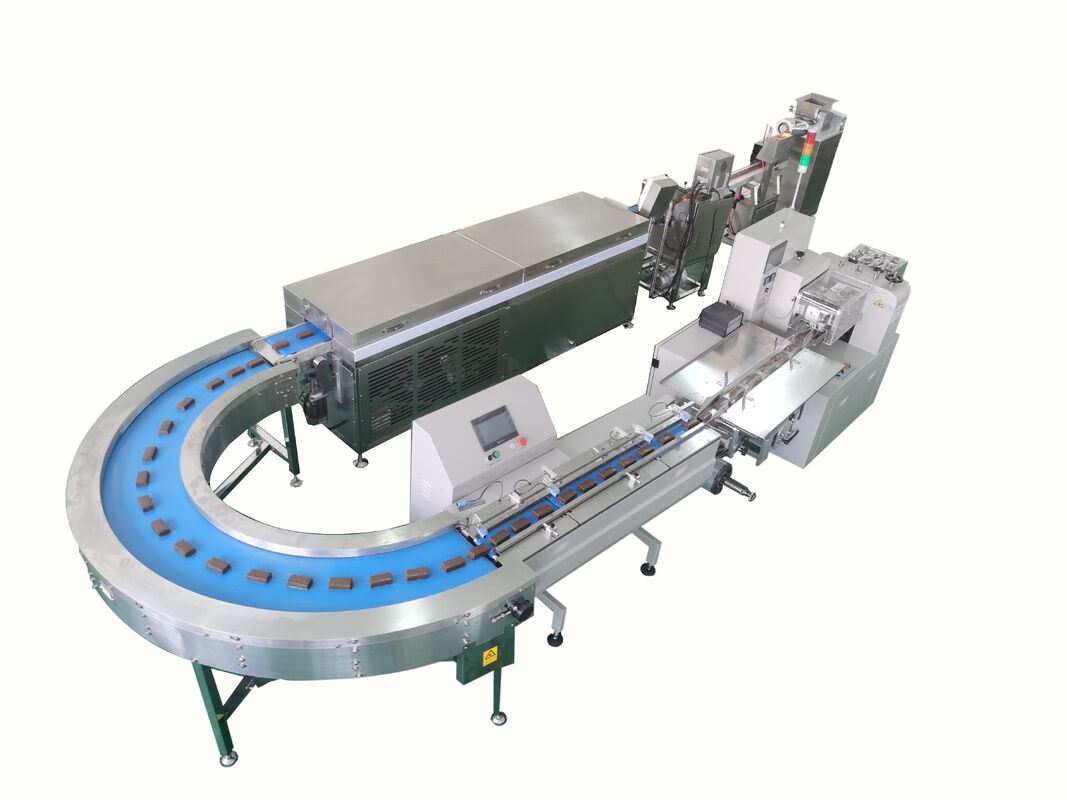

Snack Bar with Chocolate Coating Production Line | Automatic Coating System

Our complete Snack Bar with Chocolate Coating Production Line includes a protein bar extruder, protein bar cutter, chocolate enrober, chocolate cooling tunnel, connection conveyor, and flow wrapping machine. Customers can select individual machines to create a customized configuration that meets their production needs.

Key Components

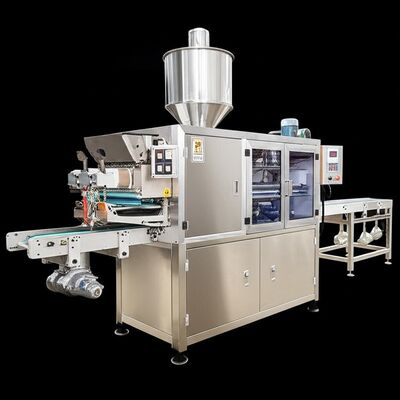

Protein Bar Extruder Machine

This versatile bar forming machine features customizable extrusion nozzles to adjust bar width and height. The bar length can be precisely controlled via the screen panel interface. Suitable for various snack bar production.

Chocolate Enrober

The essential equipment for applying chocolate coating to bars, capable of full or bottom-only coating. This machine can also coat other food products beyond snack bars.

Chocolate Cooling Tunnel

Equipped with a powerful 3P refrigerating unit capable of reaching temperatures as low as -20℃. Can also be used for cooling sticky bars without chocolate coating when connected directly to the protein bar machine.

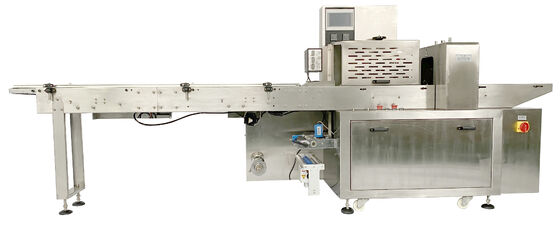

Flow Wrapping Line

Features automatic sensors to sort and count bars before wrapping. The film downside wrapping method provides excellent protection against breakage or deformation, especially for fragile and sticky bars.

Product Applications

This production line is specially designed for various bar products including:

Protein bars
Fruit bars
Energy bars
Date bars
Coconut bars
Nutrition bars
Power bars
Chocolate bars
Bar-shaped cookies
Date rolls and bites

Production Capacity Options

Our small protein bar line is ideal for low production volumes, new businesses, or limited spaces, with a maximum capacity of 60 bars per minute. For higher production needs, we offer the P400 Multiple Row Protein Bar Extruder.

Optional Equipment

1. Metal Detector

Used across food, pharmaceutical, and other industries to detect metal contaminants, ensuring product safety and brand protection.

2. Checkweighter

Provides online weight verification for packaged food using high-accuracy load cells with advanced DSP technology. Features automatic weighing compensation, zero tracking, and quick product change capabilities.

3. Planetary Mixer

Compact multi-function mixer capable of egg whipping, stuffing homogenization, and dough mixing - essential for material preparation.

Production Line Videos
