P320 Automatic Caramel Nougat Chocolate Bar Forming Cutting Machine 300mm Belt PLC Servo 0-60pcs/min

Name: P320 Automatic Caramel Nougat Chocolate Bar Forming Cutting Machine 300mm Belt PLC Servo 0-60pcs/min
Brand: Shanghai Papa Machine Technology Co.,Ltd.
SKU: P320
Availability: InStock

Brand Name:	PAPA
Model Number:	P320
MOQ:	1 Set
Price:	negotiate
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	20 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

shanghai, China

Certification:

CE, ISO 9001:2015

Model:

P320

Belt Width:

300mm

Power:

4kw

Voltage:

220V, Single Phase

Output Speed:

0-60 Pieces/min

Bar Width:

Adjustable

Machine Dimension:

4300 X 540 X 1230mm

Machine Weight:

700KG

Control System:

PLC + Double Servo Motor

Applicable Products:

Caramel Nougat Bar, Chocolate Bar, Soft Nougat, Cereal Chocolate Bar

Packaging Details:

Export-grade wooden case with waterproof wrapping, standard export packaging

Supply Ability:

20 Sets per Month

Highlight:

Caramel Nougat Chocolate Bar Machine

Double Roller Bar Forming Line

Compact Confectionery Bar Cutter

Product Description

P320 Automatic Caramel Nougat Chocolate Bar Forming & Cutting Machine

Compact Small-Scale Production Line | 300mm Belt | 0-60 pcs/min | PLC Servo Control

Machine Overview

Products You Can Make

The P320 is optimized for caramel nougat chocolate bars, soft nougat bars, chocolate-coated cereal bars, and assorted confectionery snacks.

Double Layer Rolling

Dual roller pressing for uniform caramel nougat bar thickness and consistent density

PLC Servo Precision

Double servo motor drive for precise bar cutting, ideal for chocolate enrobing prep

Compact Design

4300mm length, 220V single phase power - fits any confectionery workshop

Auto Separating

Built-in bar separation for direct transfer to chocolate enrobing line

Product Overview

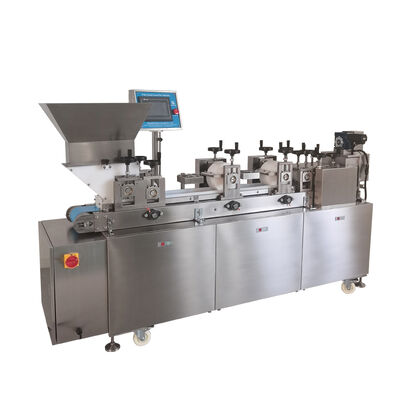

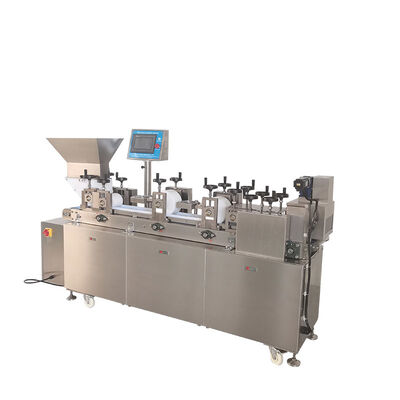

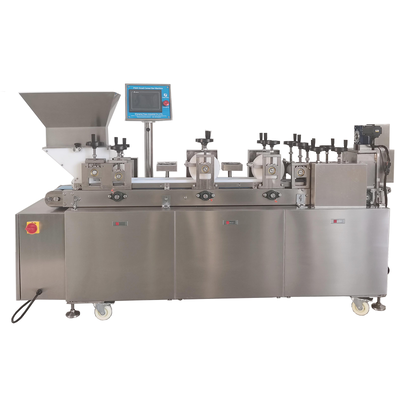

The P320 Automatic Caramel Nougat Chocolate Bar Forming and Cutting Machine is a specialized small-scale production system designed for confectionery manufacturers producing caramel nougat bars, chocolate-coated cereal bars, soft nougat bars, and similar layered confectionery products. The machine features a feeding hopper, double pressing rollers, cooling fans, and a precision guillotine cutter in one compact unit.

With double servo motor driver and PLC touchscreen control, the P320 ensures precise bar dimensions and clean-cut edges, making it the ideal forming solution before chocolate enrobing. The adjustable bar width and automatic separating function streamline the workflow from cooking to coating.

Technical Specifications

Model	P320
Belt Width	300mm
Power	4kw
Voltage	220V, Single Phase
Output Speed	0-60 pieces/min
Bar Width	Adjustable
Machine Dimension	4300 x 540 x 1230mm
Machine Weight	700KG
Control System	PLC + Double Servo Motor
Applicable Products	Caramel Nougat Bar, Chocolate Bar, Soft Nougat, Cereal Chocolate Bar

Key Features

✓Double Servo Motor: Independent servo control for roller speed and cutting, ideal for sticky caramel nougat texture.

✓Clean-Cut Edges: Precision guillotine cutter produces neat bar edges ready for chocolate enrobing.

✓Cooling System: Integrated fans rapidly set bar surfaces, preventing deformation during transfer.

✓Adjustable Thickness: Double roller pressing for flexible bar thickness from thin chocolate bars to thick nougat blocks.

✓Auto Separating: Automatic bar separation delivers individually spaced bars for enrobing line infeed.

✓SS304 Food Grade: All contact surfaces in stainless steel, safe for caramel, nougat, and chocolate processing.

✓220V Single Phase: Standard power supply compatible with workshops worldwide, no industrial three-phase needed.

✓Easy Cleaning: Tool-free disassembly of rollers and cutter for quick hygiene maintenance.

Applications

Caramel Nougat Bars Chocolate Cereal Bars Soft Nougat Bars Chocolate Coated Bars Nut Chocolate Bars Rice Chocolate Bars

After-Sales Service

✓ 12-month comprehensive warranty

✓ Online installation guidance via video call

✓ Overseas engineer dispatch available

✓ Lifetime technical support

✓ Spare parts shipped within 48 hours

✓ Free operator training (remote or on-site)

Request a Quote or Video Demonstration

Contact our sales team to discuss your caramel nougat chocolate bar production requirements or schedule a live demonstration.

Email: info@papaindustrial.com | WhatsApp: +86-15221132484
